HUSKPOWER Series Rice Husk Fired Steam Boilers

Name: HUSKPOWER Series Rice Husk Fired Steam Boilers
Brand: STEAMTHERM BOILERS PRIVATE LIMITED
Price: 950000.0 INR
Availability: InStock

Price 950000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

HUSKPOWER Series Rice Husk Fired Steam Boilers Specification

Style
Horizontal

Fuel Consumption
Varies with capacity (approx. 140-160 kg/h per ton steam)

Heat Efficiency
70-75%

Temperature
Up to 180°C

Capacity
0.5 TPH to 6 TPH

Life Span
15-20 Years

Output
Dry Saturated Steam

Pressure
7-21 kg/cm²

Fuel Type
Husk (Biomass)

Voltage
380 V

Condition
New

Material
Mild Steel

Part Type
Power Steam Boiler

Dimension (L*W*H)
Customized

Function
Steam Generation using Husk as Fuel

Application
Industrial, Rice Mills, Processing Plants

Surface Finish
Paint Coated

Automation Grade
Semi-Automatic

Firing Method
Manual/Automatic

Safety Features
Pressure Gauge, Safety Valve, Water Level Indicator

Mounting
Floor Mounted

Boiler Type
Smoke Tube Boiler

Installation
On-site Installation Available

HUSKPOWER Series Rice Husk Fired Steam Boilers About

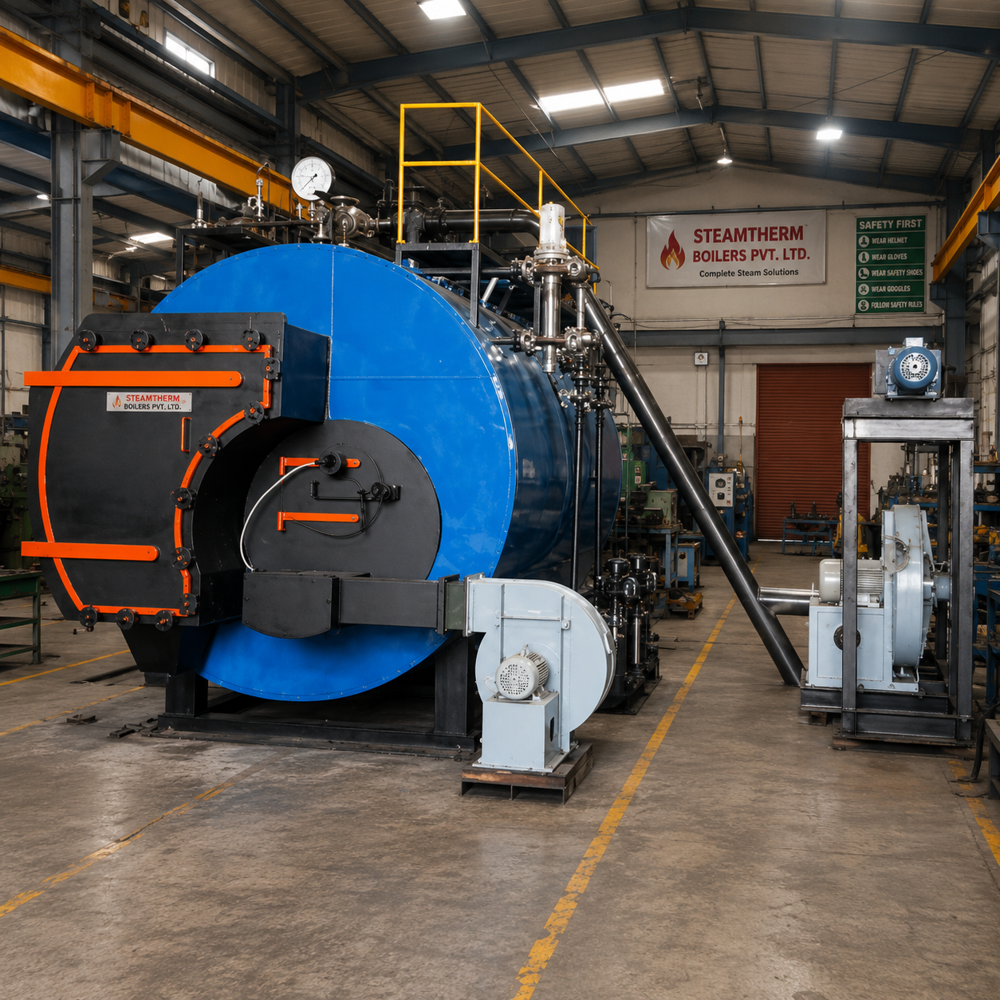

HUSKPOWER Series Rice Husk Fired Steam Boilers

The HUSKPOWER Series is a high-efficiency Rice Husk Fired Steam Boiler specially designed to utilize rice husk and other agricultural biomass fuels for economical and sustainable steam generation. With advanced combustion technology and a robust three-pass design, the HUSKPOWER Series delivers reliable performance, high thermal efficiency, and low operating costs, making it an ideal solution for rice mills and agro-based industries.

Technical Specifications
- Capacity Range: 0.5 TPH to 10 TPH
- Working Pressure: 10.54 kg/cm(g) to 17.5 kg/cm(g)
- Boiler Type: Three Pass Smoke Tube / Water Tube (As per Capacity)
- Thermal Efficiency: 82% 2%
- Fuel Feeding: Manual / Automatic (Optional)
- Standards: IBR Compliant
Fuel Options
- Rice Husk
- Paddy Husk
- Biomass Briquettes
- Saw Dust
- Wood Chips
- Agro Waste
- Groundnut Shell
- Bagasse
- Biomass Pellets
Key Features
- Specially Designed for Rice Husk Combustion
- High Thermal Efficiency (82% 2%)
- Three-Pass Heat Transfer Design
- Low Fuel Consumption
- Uniform Steam Generation
- Robust & Durable Construction
- Easy Ash Removal System
- Low Maintenance Cost
- Eco-Friendly Biomass Combustion
- Reliable Continuous Operation
Applications
- Rice Mills
- Food Processing Industry
- Dairy Industry
- Chemical Industry
- Textile Industry
- Paper & Packaging
- Agro Processing Plants
- Edible Oil Industry
- Plywood Industry
- Engineering Industries
Advantages
- Maximum Utilization of Rice Husk Fuel
- Significant Reduction in Fuel Cost
- Sustainable & Renewable Energy Solution
- Low Operating Cost
- Reliable Steam Supply
- Long Equipment Life
HUSKPOWER Series Converting Rice Husk into Reliable Steam Energy.
