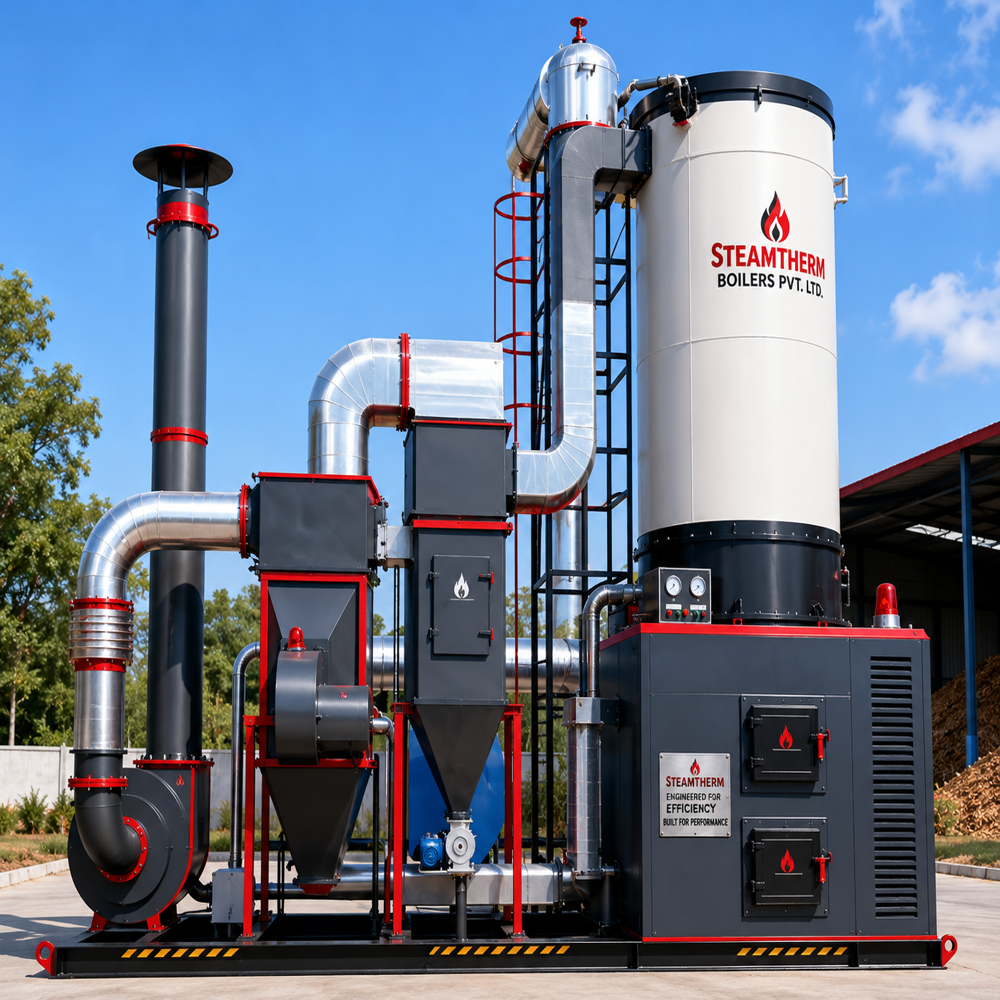

VTM Series Vertical Three Pass Manual Fired Thermic Fluid Heater

VTM Series Vertical Three Pass Manual Fired Thermic Fluid Heater

The VTM Series is a Vertical Three Pass Manual Fired Thermic Fluid Heater designed to provide efficient, safe, and economical process heating for a wide range of industrial applications. Its optimized three-pass heat transfer design ensures excellent heat utilization, stable thermal performance, and reduced fuel consumption. The VTM Series is a reliable and cost-effective solution for industries using solid fuels for continuous heating operations.

Technical Specifications

• Heating Capacity: 1,00,000 kcal/hr to 20,00,000 kcal/hr
• Maximum Operating Temperature: Up to 300C
• Heater Type: Vertical Three Pass Manual Fired Thermic Fluid Heater
• Thermal Efficiency: 80% 2%
• System Type: Forced Circulation
• Standards: Designed as per International Engineering Standards

Fuel Options

• Coal
• Wood
• Saw Dust
• Rice Husk
• Agro Waste
• Bagasse
• Biomass Pellets
• Wood Chips
• Groundnut Shell
• Coconut Shell

Key Features

• Vertical Three Pass Heat Transfer Design
• High Thermal Efficiency (Up to 80% 2%)
• Manual Fuel Firing System
• Uniform Heat Distribution
• Multi-Fuel Firing Capability
• Low Fuel Consumption
• Compact & Robust Construction
• Easy Operation & Maintenance
• Long Equipment Life
• Cost-Effective Heating Solution

Applications

• Food Processing
• Dairy Industry
• Textile Industry
• Chemical Industry
• Pharmaceutical Industry
• Plywood & Laminate
• Paper & Packaging
• Rubber & Plastic
• Edible Oil Plants
• Engineering Industries

Advantages

• Reliable Process Heating
• Energy-Efficient Operation
• Low Operating & Maintenance Cost
• Easy Fuel Handling
• Durable Construction
• Suitable for Continuous Industrial Operations

VTM Series Simple Design. Reliable Heating. Efficient Performance.
